Contents

• RX射频性能比对
• TX射频性能比对
• 802.11ax速率
• 802.11ac速率
• 802.11n速率
• 802.11a速率
• IPQ6018 高通官方数据

RX射频性能比对

5G速率/机种	NHX4019-V02A	NHX4019-V03	NHX5018-V01B	NHX6018-V03E	BVP300	NHX9342-V02
11A OFDM 6M	-93	-89	-93.5	-96	-93	-93
11A OFDM 54M	-76	-70.5	-75.5	-76	-79	-75
11N HT20 MCS0	-92	-88	-94	-96	-92	-93
11N HT20 MCS7	-73	-67	-76	-78	-72	-75
11N HT40 MCS0	-90	-85	-91	-93
11N HT40 MCS7	-71	-66.5	-74	-76
11AC HT20 MCS0	-92	-88	-94	-96
11AC HT20 MCS8	-69	-63	-72	-75
11AC HT40 MCS0	-90	-85.5	-91.5	-93
11AC HT40 MCS9	-65	-59.5	-68.5	-71
11AC HT80 MCS0	-86	-82	-90.5	-91
11AC HT80 MCS9	-60	-57.5	-65.5	-67
AX20 MCS0			-94.5	-95
AX20 MCS11			-65	-67
AX40 MCS0			-91.5	-93
AX40 MCS11			-62.5	-65
AX80 MCS0			-90.5	-91
AX80 MCS11			-60	-62

2.4G速率/机种	NHX4019-V02A	NHX4019-V03	NHX5018-V01B	NHX6018-V03E	NHX9342-V02
11B CCK 1M	-94	-97	-90
11B CCK 11M	-90	-90.5	-85
11G OFDM 6M	-93	-93	-94.5		-93
11G OFDM 54M	-77	-75.5	-76		-78
11N HT20 MCS0	-92	-92.5	-95		-93
11N HT20 MCS7	-74	-73	-76		-67
11N HT40 MCS0	-90	-89.5	-86
11N HT40 MCS7	-71	-70.5	-68.5
11AC HT20 MCS0	-93	-92	-96
11AC HT20 MCS8	-70	-69	-72.5
11AC HT40 MCS0	-90	-89.5	-86.5
11AC HT40 MCS9	-66	-65	-63
AX20 MCS0			-94.5
AX20 MCS11			-64
AX40 MCS0			-89
AX40 MCS11			-59

TX射频性能比对

5G速率/机种	NHX4019-V02A	NHX4019-V03	NHX5018-V01B	NHX6018-V03E	BVP300	NHX9342-V02
OFDM 6M					26	22
OFDM 54M					22	20
HT20 MCS0					26	21
HT20 MCS7					22	20
HT40 MCS0					26	20
HT40 MCS7					20	20
AX20 MCS0
AX20 MCS11
AX40 MCS0
AX40 MCS11
AX80 MCS0
AX80 MCS11

2.4G速率/机种	NHX4019-V02A	NHX4019-V03	NHX5018-V01B	NHX6018-V03E	NHX9342-V02
OFDM 6M					23
OFDM 54M					21
HT20 MCS0					23
HT20 MCS7					21
AX20 MCS0
AX20 MCS11
AX40 MCS0
AX40 MCS11
AX80 MCS0
AX80 MCS11

802.11ax速率

引用:https://en.wikipedia.org/wiki/Wi-Fi_6

Modulation and coding schemes

MCS index[i]	Modulation type	Coding rate	Data rate (Mbit/s)[ii]
			20 MHz channels		40 MHz channels		80 MHz channels		160 MHz channels
			1600 ns GI[iii]	800 ns GI	1600 ns GI	800 ns GI	1600 ns GI	800 ns GI	1600 ns GI	800 ns GI
0	BPSK	1/2	8	8.6	16	17.2	34	36.0	68	72
1	QPSK	1/2	16	17.2	33	34.4	68	72.1	136	144
2	QPSK	3/4	24	25.8	49	51.6	102	108.1	204	216
3	16-QAM	1/2	33	34.4	65	68.8	136	144.1	272	282
4	16-QAM	3/4	49	51.6	98	103.2	204	216.2	408	432
5	64-QAM	2/3	65	68.8	130	137.6	272	288.2	544	576
6	64-QAM	3/4	73	77.4	146	154.9	306	324.4	613	649
7	64-QAM	5/6	81	86.0	163	172.1	340	360.3	681	721
8	256-QAM	3/4	98	103.2	195	206.5	408	432.4	817	865
9	256-QAM	5/6	108	114.7	217	229.4	453	480.4	907	961
10	1024-QAM	3/4	122	129.0	244	258.1	510	540.4	1021	1081
11	1024-QAM	5/6	135	143.4	271	286.8	567	600.5	1134	1201

Notes

1. ^ MCS 9 is not applicable to all combinations of channel width and spatial stream count.
2. ^ Per spatial stream.
3. ^ GI stands for guard interval.

802.11ac速率

引用：https://en.wikipedia.org/wiki/IEEE_802.11ac-2013

Modulation and coding schemes

MCS index[b]	Spatial Streams	Modulation type	Coding rate	Data rate (Mbit/s)[21]
				20 MHz channels		40 MHz channels		80 MHz channels		160 MHz channels
				800 ns GI	400 ns GI	800 ns GI	400 ns GI	800 ns GI	400 ns GI	800 ns GI	400 ns GI
0	1	BPSK	1/2	6.5	7.2	13.5	15	29.3	32.5	58.5	65
1	1	QPSK	1/2	13	14.4	27	30	58.5	65	117	130
2	1	QPSK	3/4	19.5	21.7	40.5	45	87.8	97.5	175.5	195
3	1	16-QAM	1/2	26	28.9	54	60	117	130	234	260
4	1	16-QAM	3/4	39	43.3	81	90	175.5	195	351	390
5	1	64-QAM	2/3	52	57.8	108	120	234	260	468	520
6	1	64-QAM	3/4	58.5	65	121.5	135	263.3	292.5	526.5	585
7	1	64-QAM	5/6	65	72.2	135	150	292.5	325	585	650
8	1	256-QAM	3/4	78	86.7	162	180	351	390	702	780
9	1	256-QAM	5/6	—	—	180	200	390	433.3	780	866.7
0	2	BPSK	1/2	13	14.4	27	30	58.5	65	117	130
1	2	QPSK	1/2	26	28.9	54	60	117	130	234	260
2	2	QPSK	3/4	39	43.3	81	90	175.5	195	351	390
3	2	16-QAM	1/2	52	57.8	108	120	234	260	468	520
4	2	16-QAM	3/4	78	86.7	162	180	351	390	702	780
5	2	64-QAM	2/3	104	115.6	216	240	468	520	936	1040
6	2	64-QAM	3/4	117	130.3	243	270	526.5	585	1053	1170
7	2	64-QAM	5/6	130	144.4	270	300	585	650	1170	1300
8	2	256-QAM	3/4	156	173.3	324	360	702	780	1404	1560
9	2	256-QAM	5/6	—	—	360	400	780	866.7	1560	1733.3
0	3	BPSK	1/2	19.5	21.7	40.5	45	87.8	97.5	175.5	195
1	3	QPSK	1/2	39	43.3	81	90	175.5	195	351	390
2	3	QPSK	3/4	58.5	65	121.5	135	263.3	292.5	526.5	585
3	3	16-QAM	1/2	78	86.7	162	180	351	390	702	780
4	3	16-QAM	3/4	117	130	243	270	526.5	585	1053	1170
5	3	64-QAM	2/3	156	173.3	324	360	702	780	1404	1560
6	3	64-QAM	3/4	175.5	195	364.5	405	—	—	1579.5	1755
7	3	64-QAM	5/6	195	216.7	405	450	877.5	975	1755	1950
8	3	256-QAM	3/4	234	260	486	540	1053	1170	2106	2340
9	3	256-QAM	5/6	260	288.9	540	600	1170	1300	2340	2600
0	4	BPSK	1/2	26	28.8	54	60	117.2	130	234	260
1	4	QPSK	1/2	52	57.6	108	120	234	260	468	520
2	4	QPSK	3/4	78	86.8	162	180	351.2	390	702	780
3	4	16-QAM	1/2	104	115.6	216	240	468	520	936	1040
4	4	16-QAM	3/4	156	173.2	324	360	702	780	1404	1560
5	4	64-QAM	2/3	208	231.2	432	480	936	1040	1872	2080
6	4	64-QAM	3/4	234	260	486	540	1053.2	1170	2106	2340
7	4	64-QAM	5/6	260	288.8	540	600	1170	1300	2340	2600
8	4	256-QAM	3/4	312	346.8	648	720	1404	1560	2808	3120
9	4	256-QAM	5/6	—	—	720	800	1560	1733.3	3120	3466.7

802.11n速率

引用：https://en.wikipedia.org/wiki/IEEE_802.11n-2009

Modulation and coding schemes

MCS index	Spatial streams	Modulation type	Coding rate	Data rate (Mbit/s)[a]
				20 MHz channel		40 MHz channel
				800 ns GI	400 ns GI	800 ns GI	400 ns GI
0	1	BPSK	1/2	6.5	7.2	13.5	15
1	1	QPSK	1/2	13	14.4	27	30
2	1	QPSK	3/4	19.5	21.7	40.5	45
3	1	16-QAM	1/2	26	28.9	54	60
4	1	16-QAM	3/4	39	43.3	81	90
5	1	64-QAM	2/3	52	57.8	108	120
6	1	64-QAM	3/4	58.5	65	121.5	135
7	1	64-QAM	5/6	65	72.2	135	150
8	2	BPSK	1/2	13	14.4	27	30
9	2	QPSK	1/2	26	28.9	54	60
10	2	QPSK	3/4	39	43.3	81	90
11	2	16-QAM	1/2	52	57.8	108	120
12	2	16-QAM	3/4	78	86.7	162	180
13	2	64-QAM	2/3	104	115.6	216	240
14	2	64-QAM	3/4	117	130	243	270
15	2	64-QAM	5/6	130	144.4	270	300
16	3	BPSK	1/2	19.5	21.7	40.5	45
17	3	QPSK	1/2	39	43.3	81	90
18	3	QPSK	3/4	58.5	65	121.5	135
19	3	16-QAM	1/2	78	86.7	162	180
20	3	16-QAM	3/4	117	130	243	270
21	3	64-QAM	2/3	156	173.3	324	360
22	3	64-QAM	3/4	175.5	195	364.5	405
23	3	64-QAM	5/6	195	216.7	405	450
24	4	BPSK	1/2	26	28.8	54	60
25	4	QPSK	1/2	52	57.6	108	120
26	4	QPSK	3/4	78	86.8	162	180
27	4	16-QAM	1/2	104	115.6	216	240
28	4	16-QAM	3/4	156	173.2	324	360
29	4	64-QAM	2/3	208	231.2	432	480
30	4	64-QAM	3/4	234	260	486	540
31	4	64-QAM	5/6	260	288.8	540	600
32	1	BPSK	1/4	—	—	6.0	6.7
33 – 38	2	Asymmetric mod.		Depends	Depends	Depends	Depends
39 – 52	3	Asymmetric mod.		Depends	Depends	Depends	Depends
53 – 76	4	Asymmetric mod.		Depends	Depends	Depends	Depends
77 – 127		Reserved		—	—	—	—

802.11a速率

引用: https://en.wikipedia.org/wiki/IEEE_802.11a-1999

RATE bits	Modulation type	Coding rate	Data rate (Mbit/s)[a]
1101	BPSK	1/2	6
1111	BPSK	3/4	9
0101	QPSK	1/2	12
0111	QPSK	3/4	18
1001	16-QAM	1/2	24
1011	16-QAM	3/4	36
0001	64-QAM	2/3	48
0011	64-QAM	3/4	54

1. ^ The data rate is for 20 MHz channel spacing.

---

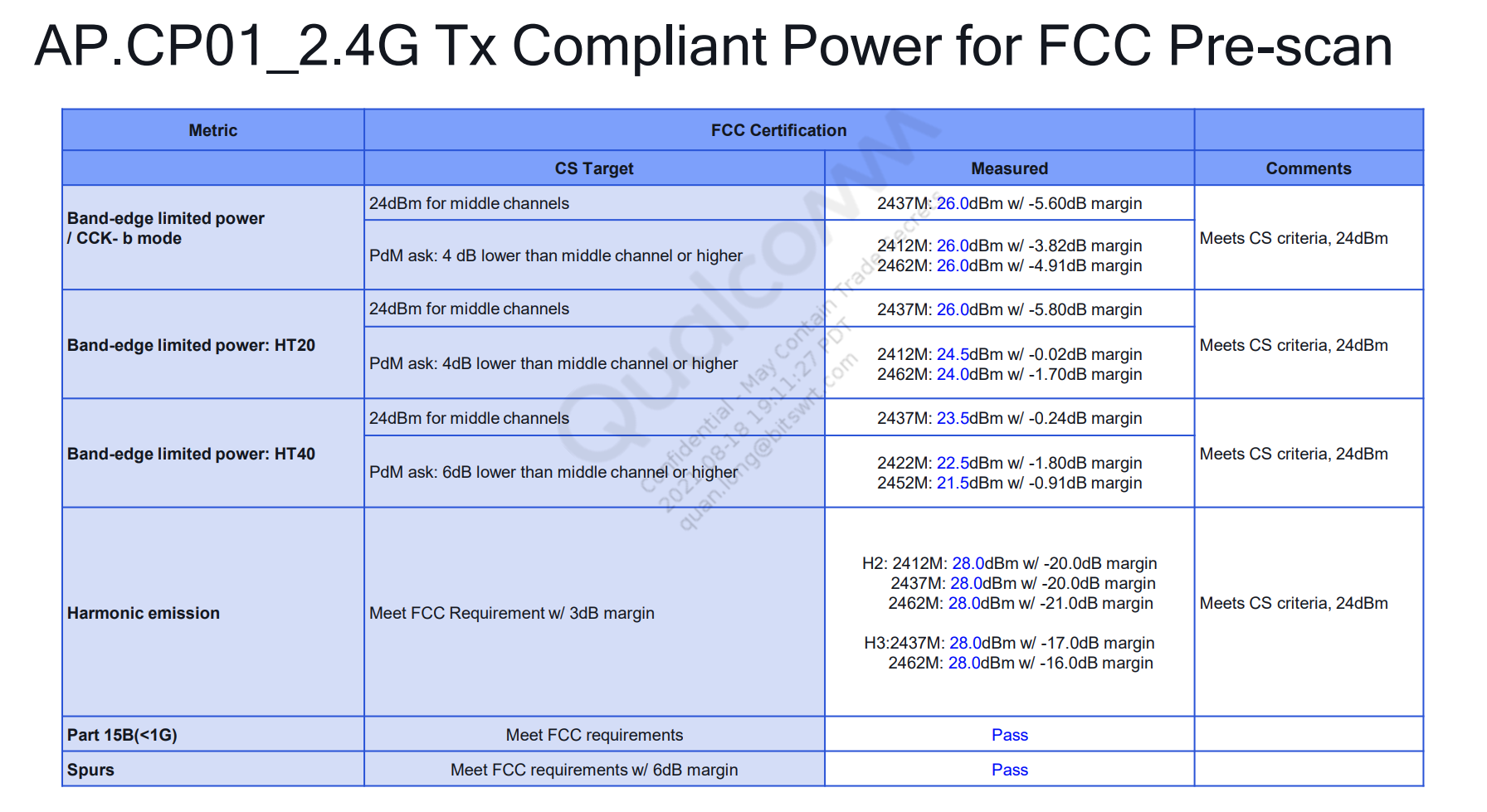

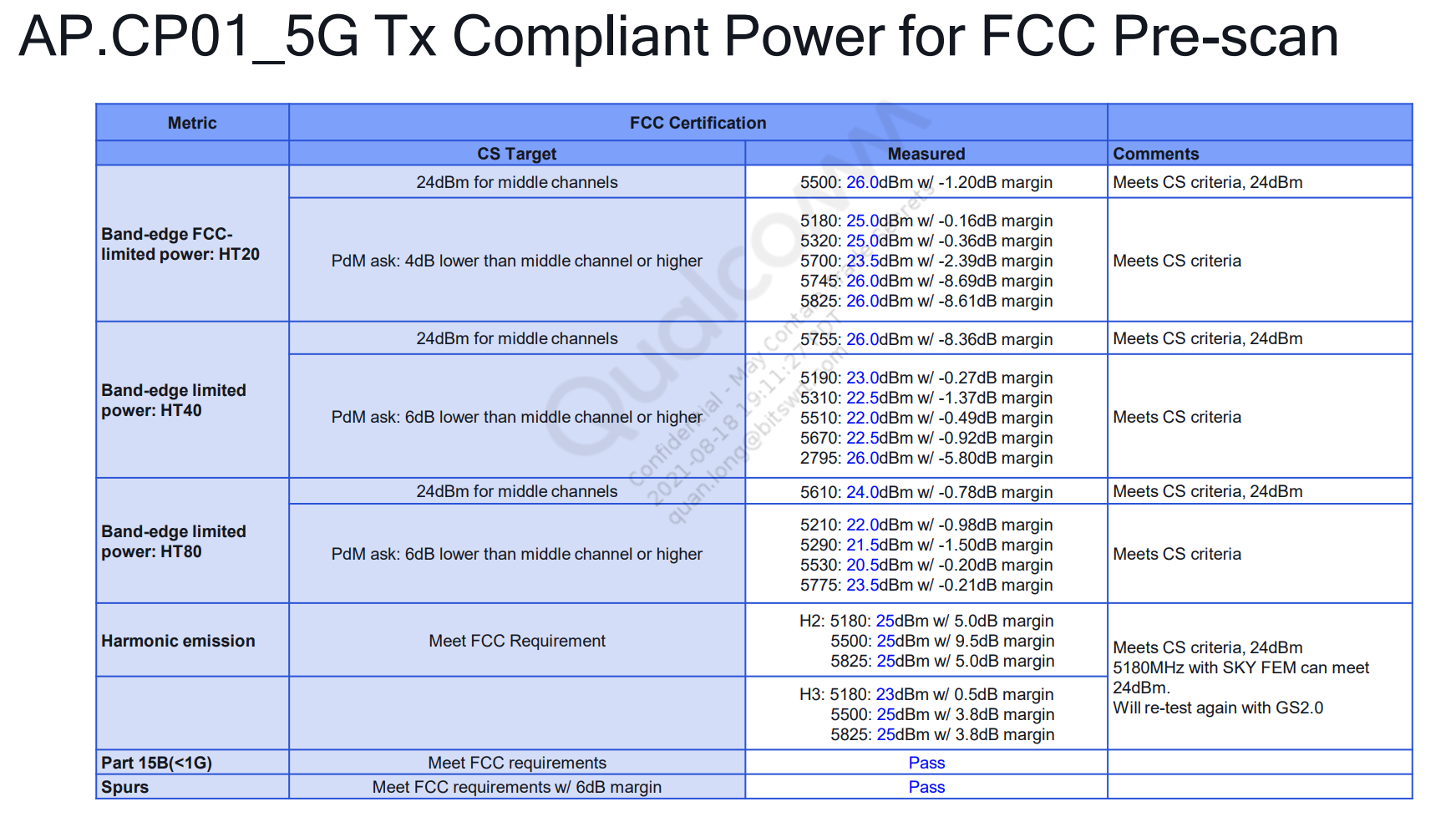

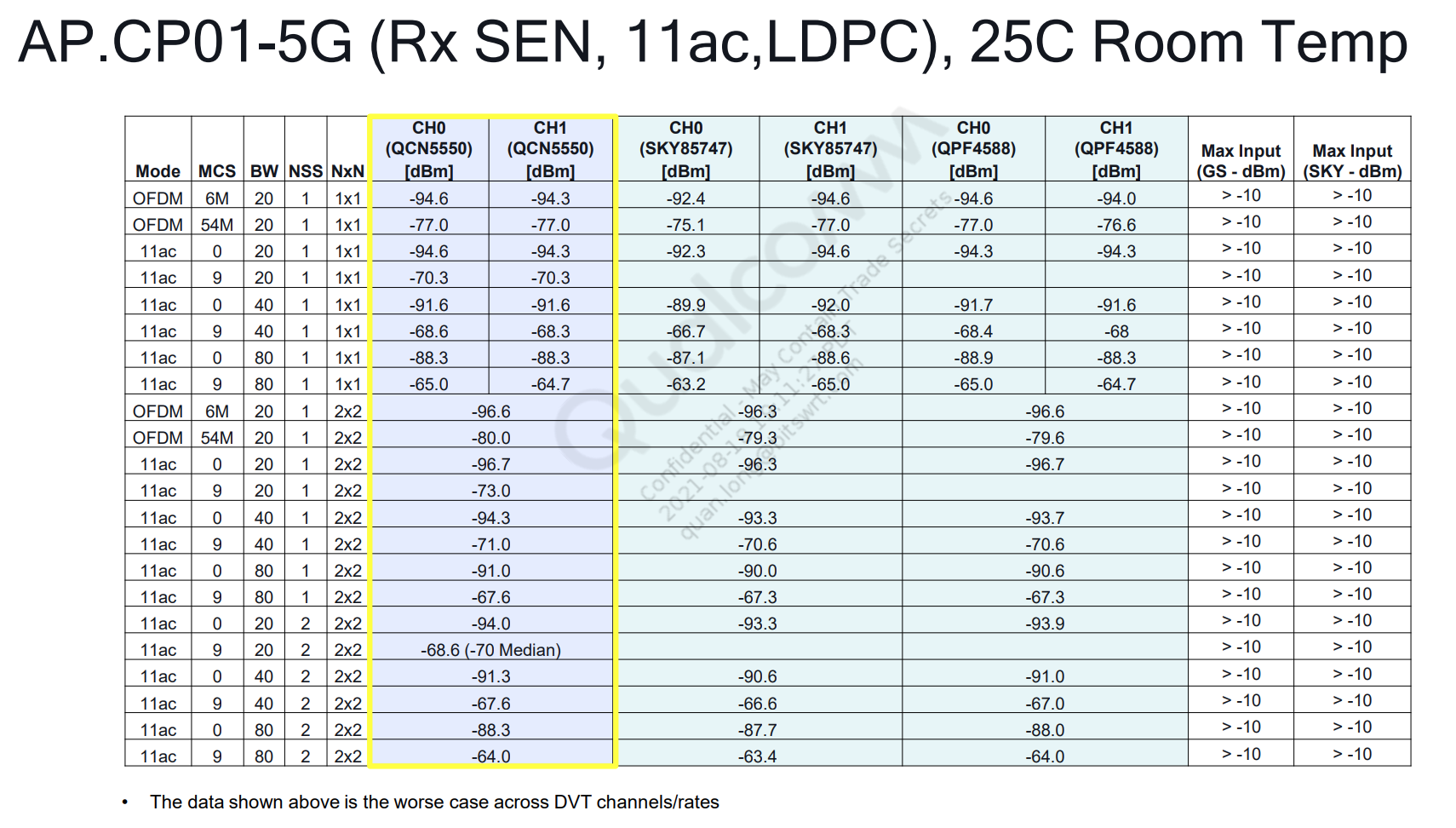

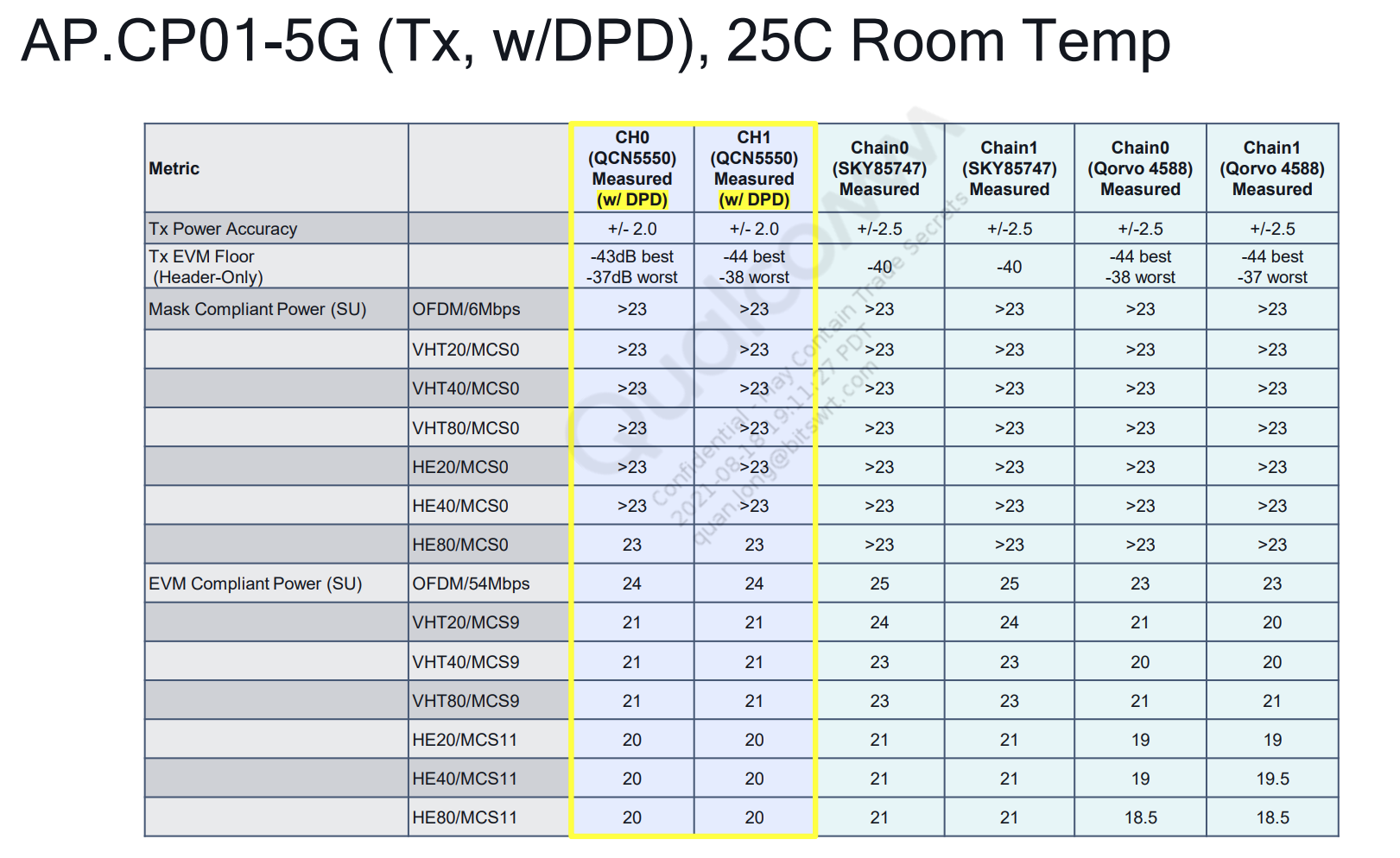

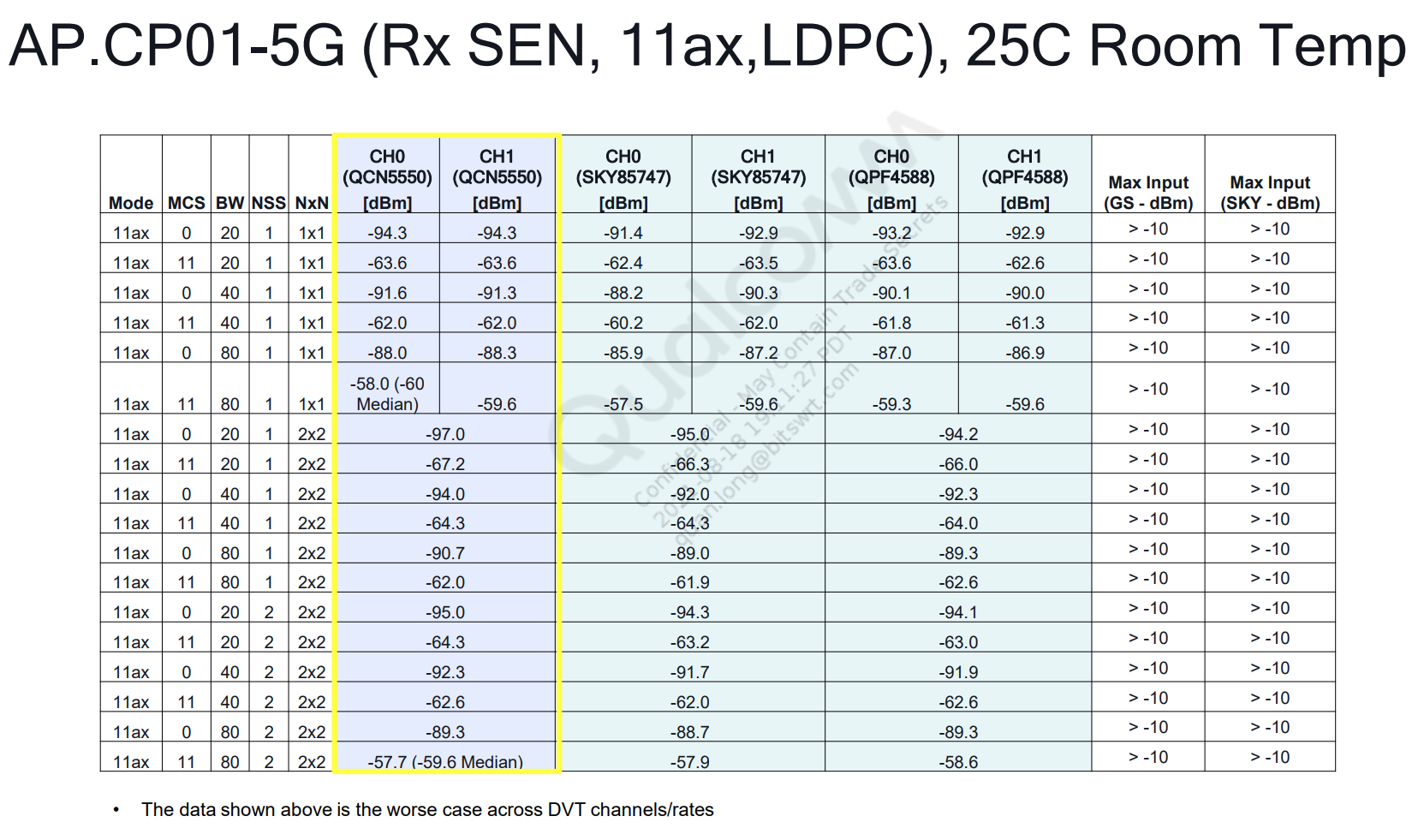

IPQ6018 高通官方数据
